Spesifikasi Motor Honda Vario 125

• Mesin

• Engine Type	4-Stroke, SOHC, eSP, Liquid Cooled
  Displacement	124,8 cm³
  Cooling System	Liquid Cooled
  Fuel Supply System	PGM-FI
  Bore x Stroke	52,4 x 57,9 mm
  Compression Ratio	11,0:1
  Maximum Power	8,2 kW (11,1 PS) / 8.500 rpm
  Maximum Torque	10,8 Nm (1,1 kgf.m) / 5.000 rpm
  Transmission	Automatic, V-Matic
  Starting System	Electric
  Clutch System	Automatic Centrifugal Clutch Dry Type
  Lubrication Type	Wet
  Oil Capacity	0,8 L (Periodic Exchange)

• Rangka & Kaki-Kaki

• Frame Type	Underbone
  Tire Size Front	90/80 – 14M/C 43 P Tubeless
  Tire Size Rear	100/80 – 14M/C 48P Tubeless
  Brake Type Front	Wavy Disc Brake
  Brake Type Rear	Drum Brake
  Brake System	Combi Brake System (CBS)
  Suspension Type Front	Telescopic
  Suspension Type Rear	Swing Arm with Single Suspension

• Dimensi & Berat

• Lenght x Width x Height	Vario 125 1.919 x 687 x 1.075 mm

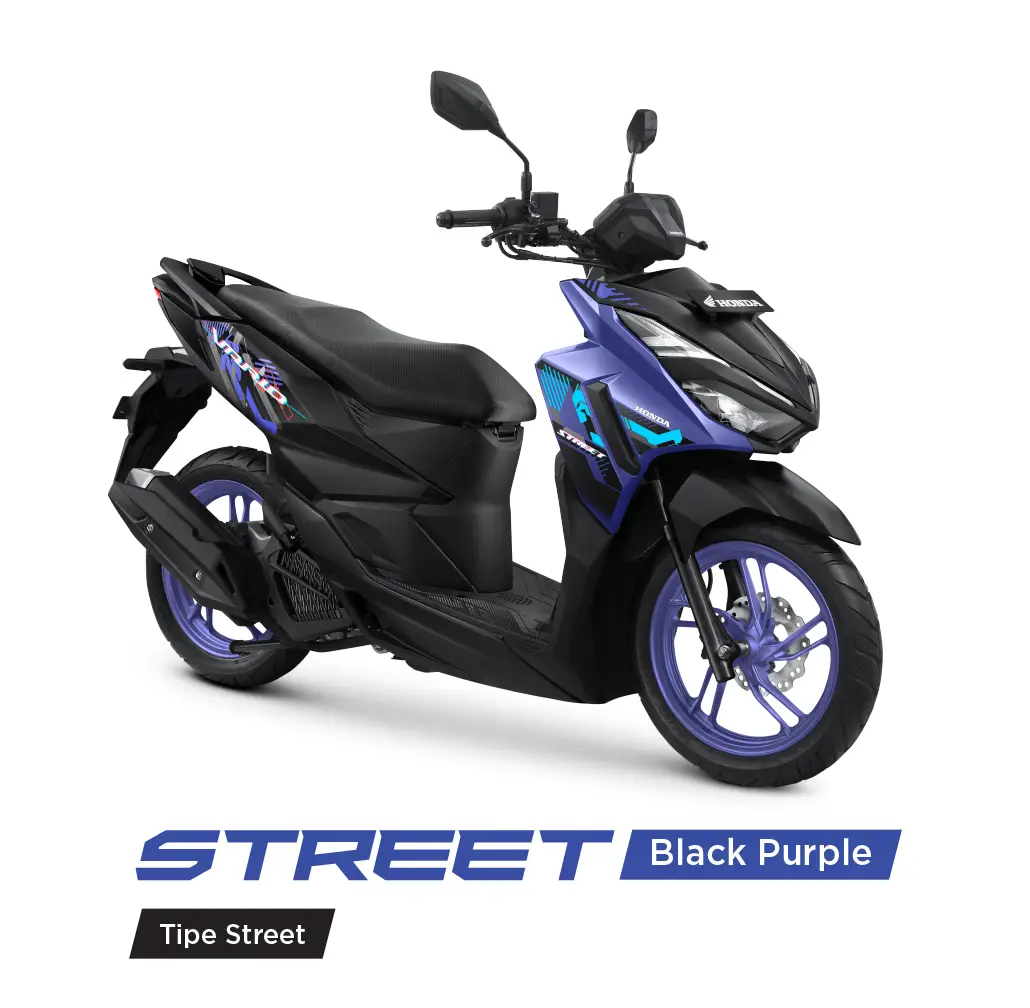

  	Vario 125 Street 1.919 x 751 x 1.076 mm
  Wheel Base	1.280 mm
  Ground Clearance	131 mm
  Curb Seat Height	769 mm
  Curb Mass	111 kg
  	Vario 125 112 kg

• Kapasitas

• U-Box Capacity	18 liter
  Fuel Tank	5,5 liter

• Kelistrikan

• Ignition Type	Full transisterized
  Battery	MF 12V-5Ah
  Spark Plug Type	NGK CPR7EA-9 / Denso U22EPR9
